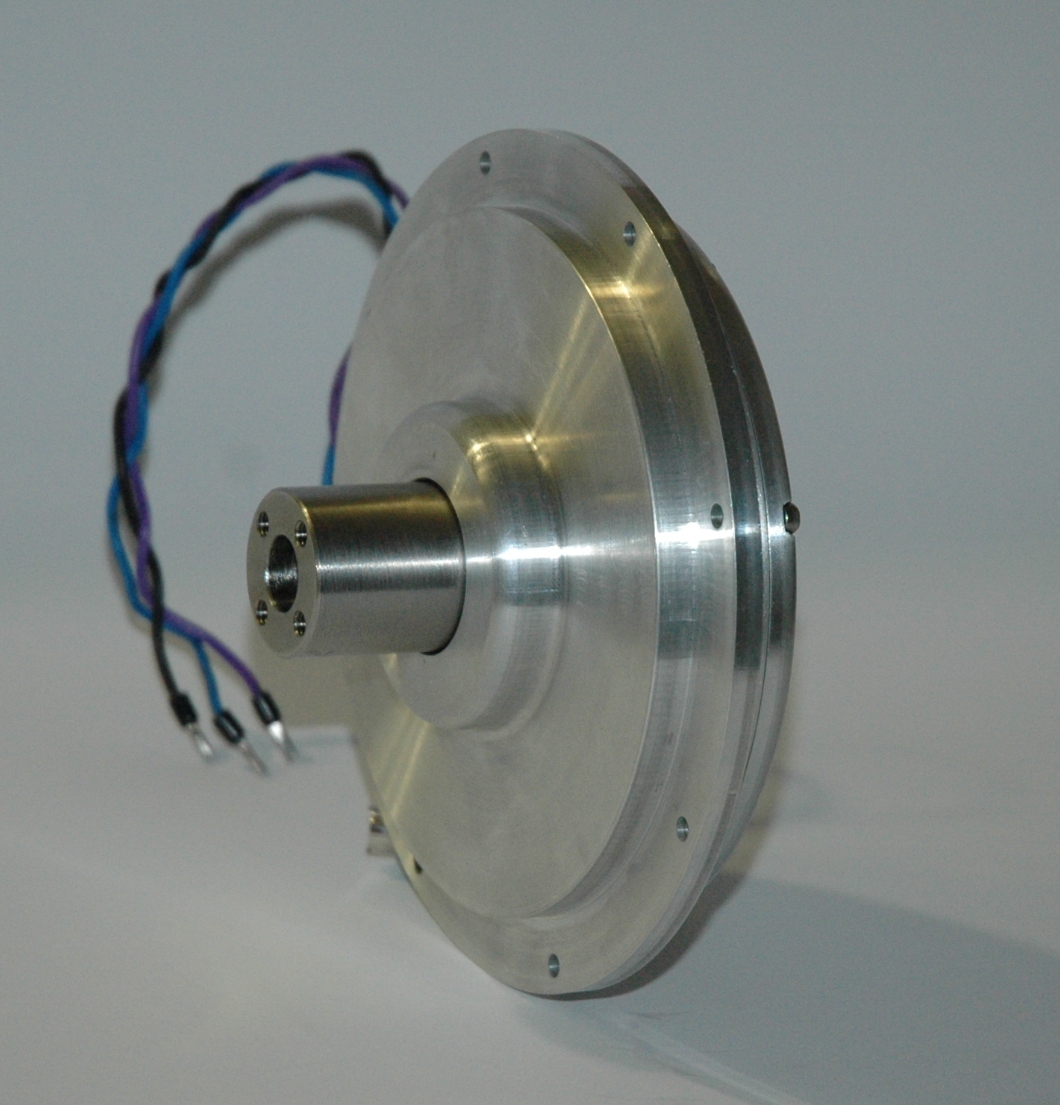

Flat Servo Torque Motors

The most compact and powerful motors available.

Flat, brushless, coreless, based on proprietary technology. A powerful machine with extraordinarily rapid response.

  • COMPACT - 60% shorter than others (same power)

  • POWERFUL - superior torque capability
  • SMOOTH - no cogging (coreless)
  • RAPID RESPONSE  – short electrical time constant
  • HOLLOW SHAFT
  • COST EFFECTIVE
Our Flat motors are based on axial-flux, permanent magnet, coreless winding, brushless design in a unique proprietary configuration.
Coriolis BLDC Flat Motors offer a low-profile, excellent power/volume ratio, direct drive with zero-backlash, no cogging, hollow shaft and high efficiencies.
They are ideal for pedestals, turrets and positioning applications, as well as for high-speed applications where compact size is required.
We can provide flat motors with the following optional features:

Housed or frameless (stator-rotor set)
  • Hall sensors or sensorless
  • Integral Encoder
  • Integral Electronic Driver
  • Gearbox
REQUESTS FOR CUSTOM DESIGNS ARE WELCOME
Download Detailed Flat Motor brochure (.pdf)
